Grundfos

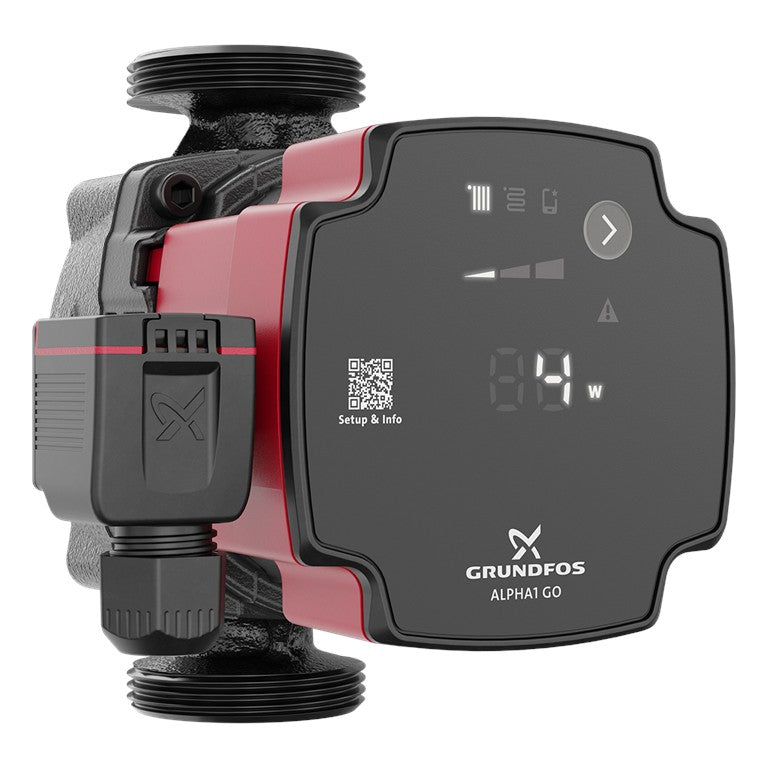

Grundfos ALPHA1 GO 25-65 130 Circulating Pump – 93094216
Grundfos
Grundfos ALPHA1 GO 25-65 130 Circulating Pump – 93094216
Grundfos ALPHA1 GO 25-65 130 High Efficiency Circulating Pump – 93094216
The Grundfos ALPHA1 GO 25-65 130 is a high-efficiency central heating circulating pump designed to deliver reliable water circulation in domestic heating and air conditioning systems. Featuring advanced electronically controlled operation, intelligent pump settings and a compact 130mm installation length, it offers a practical solution for both new installations and heating pump replacements.
Built with energy efficiency, reliability and installer convenience in mind, the ALPHA1 GO combines automatic self-venting, dry-running protection and robust start-up technology with straightforward controls for efficient heating system operation.
Manufacturer: Grundfos
Model: ALPHA1 GO 25-65 130
Manufacturer Part Number: 93094216
Key Features & Benefits
- High-Efficiency Circulation: Electronically controlled motor technology helps deliver efficient circulation for heating systems.
- 6.5 Metre Maximum Head: Designed to deliver effective circulation across a range of heating applications.
- 130mm Installation Length: Compact port-to-port dimensions for suitable replacement and new installations.
- Intelligent Control Modes: Choose between proportional pressure, constant pressure and constant curve operation, with three selectable settings per mode.
- Grundfos GO App Support: Assists installers with pump replacement and configuration using the Grundfos GO app.
- Automatic Self-Venting: Helps remove trapped air from the pump during operation.
- Dry-Running Protection: Detects dry-running conditions and stops operation to help protect the pump.
- Robust Start-Up: Designed to reduce the risk of blockages caused by dirt, magnetite and limescale.
- Tool-Free Electrical Connector: Simplifies electrical connection during installation.
- Clear Operating Display: Provides useful operating information and fault indication.
- Quiet Operation: Designed for low-noise operation in suitable installations.
Technical Specifications
| Manufacturer | Grundfos |
|---|---|
| Product Range | ALPHA1 GO |
| Model | 25-65 130 |
| Part Number | 93094216 |
| Supply Voltage | 1 x 220–240V AC |
| Frequency | 50/60Hz |
| Maximum Head | 6.5m |
| Maximum Flow Rate | 3.9m³/h |
| Installation Length | 130mm |
| Pipe Connection | G 1½ threaded |
| Power Consumption | Approx. 4–60W |
| Maximum Operating Pressure | 10 bar |
| Liquid Temperature Range | -10°C to +110°C, subject to operating conditions |
| Enclosure Protection | IP44 |
| Pump Housing | Cast iron |
| Control Modes | Constant Pressure, Proportional Pressure, Constant Curve |
Suitable Applications
The Grundfos ALPHA1 GO 25-65 130 circulation pump is suitable for compatible heating and air conditioning applications, including:
- Domestic central heating systems
- Radiator heating circuits
- Compatible underfloor heating systems
- Heating pump replacements
- New heating system installations
- Suitable hydronic heating and cooling circuits
Designed for Easy Heating Pump Replacement
Replacing a central heating pump is made easier with the Grundfos ALPHA1 GO. Its compact 130mm installation length, practical operating controls and convenient electrical connector help simplify installation.
The Grundfos GO app provides additional assistance when identifying compatible replacement circulators and configuring supported pump settings.
Always confirm the required pump head, flow rate, dimensions, electrical supply and connection size before replacing an existing pump.
Frequently Asked Questions
What is the Grundfos ALPHA1 GO 25-65 130 used for?
It is an energy-efficient circulating pump designed to move water around compatible domestic central heating and hydronic heating systems.
What is the installation length of this Grundfos pump?
The ALPHA1 GO 25-65 130 has a 130mm port-to-port installation length.
What is the maximum head of the ALPHA1 GO 25-65?
This model has a maximum pump head of 6.5 metres. Actual performance depends on the selected operating mode and system conditions.
Can the Grundfos ALPHA1 GO replace my existing heating pump?
The ALPHA1 GO is designed for suitable replacement applications. Compatibility should be confirmed against the original pump's specification, hydraulic requirements and installation dimensions. The Grundfos GO app can assist with replacement selection.
Does the ALPHA1 GO have dry-running protection?
Yes. The pump includes dry-running protection and automatic self-venting functionality to help protect the unit during operation.
What is the Grundfos part number?
The manufacturer part number for this pump is 93094216.
Why Choose the Grundfos ALPHA1 GO?
Grundfos is an established manufacturer of pumps and water circulation technology. The ALPHA1 GO range combines energy-efficient motor technology with convenient installation features and intelligent pump controls.
Whether you are replacing an existing central heating circulator or installing a new heating system, the Grundfos ALPHA1 GO 25-65 130 (93094216) provides an efficient and dependable circulation solution when correctly specified and installed.
Order your Grundfos ALPHA1 GO 25-65 130 circulating pump online from Spares Direct.
Installation should be undertaken by a suitably competent person. Always check the manufacturer's installation instructions and confirm system compatibility before purchase.
