Boiler M8
Boiler-M8 RS25/6EAY-130 iPWM Circulation Pump 6m Head
Boiler M8
Boiler-M8 RS25/6EAY-130 iPWM Circulation Pump 6m Head

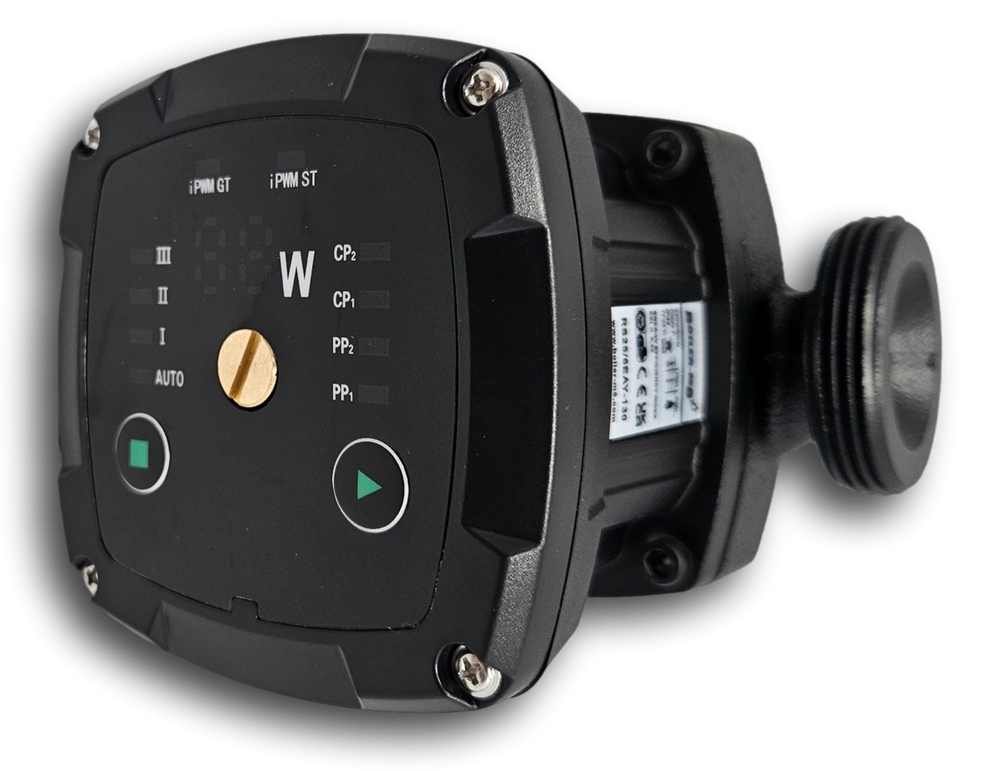

Boiler-M8 RS25/6EAY-130 iPWM Circulation Pump - 6m Head
The Boiler-M8 RS25/6EAY-130 iPWM Circulation Pump is an A-rated high-efficiency central heating pump designed for reliable water circulation in domestic heating systems. With 130mm port-to-port spacing, 6 metre head performance and an advanced iPWM variable speed interface, it is ideal for heating system upgrades, pump replacements and energy-efficient circulation control.
Designed as a practical replacement for popular circulating pumps such as selected Grundfos UPM3 models, this Boiler-M8 pump combines strong performance with flexible control modes. The iPWM interface supports heating, geothermal and solar modes, while AUTO mode provides simple plug-and-play operation for suitable systems.
Key Features
- Boiler-M8 RS25/6EAY-130 iPWM central heating circulation pump
- Manufacturer part number: 155-0200
- GTIN / EAN: 5060797371269
- A Rated energy efficiency
- ErP compliant with EEI ≤ 0.20
- 130mm port-to-port connection spacing
- 1½" BSP pump connections
- Maximum head: 6 metres
- iPWM variable speed interface for efficient pump control
- GT, ST and AUTO operating modes
- Suitable replacement for selected Grundfos UPM3-style installations
- Durable cast iron pump body
- 220-240V, 50Hz electrical supply
- Supplied boxed with iPWM cable/connector, user manual and warranty card
- 5-year warranty, registration required
Typical Applications
- Domestic central heating circulation
- Boiler pump replacement projects
- Heating system upgrades
- Replacement for selected Grundfos UPM3-type pumps
- Energy-efficient variable speed heating circuits
- Systems requiring 130mm pump spacing and up to 6m head
Product Specification
| Brand | Boiler-M8 |
| Model | RS25/6EAY-130 iPWM |
| Product Type | Central Heating Circulation Pump |
| Manufacturer Part Number | 155-0200 |
| GTIN / Barcode | 5060797371269 |
| Connection Spacing | 130mm port-to-port |
| Connection Size | 1½" BSP |
| Maximum Head | 6 metres |
| Voltage | 220-240V, 50Hz |
| Energy Rating | A Rated |
| EEI | ≤ 0.20 |
| Control Interface | iPWM variable speed control |
| Operating Modes | GT, ST and AUTO |
| Body Material | Cast iron |
| Box Contents | Pump unit, iPWM cable/connector, user manual and warranty card |
| Warranty | 5 years, registration required |
Why Choose the Boiler-M8 RS25/6EAY-130?
The Boiler-M8 RS25/6EAY-130 is designed for efficient, reliable circulation in modern heating systems. Its A-rated efficiency and iPWM control help reduce unnecessary energy use, while the 6m head performance makes it suitable for larger domestic circuits and heavier heating loads.
With 130mm spacing and 1½" BSP connections, this pump is a practical retrofit option for many existing heating pump installations. The cast iron body supports long-term durability, while the included cable, connector and documentation help simplify installation and commissioning.
Please note: always check existing pump spacing, connection size, wiring requirements, control compatibility and system design before ordering. Circulation pumps should be installed by a suitably qualified heating engineer or competent electrical professional. The system should be flushed, vented and commissioned correctly after installation.
