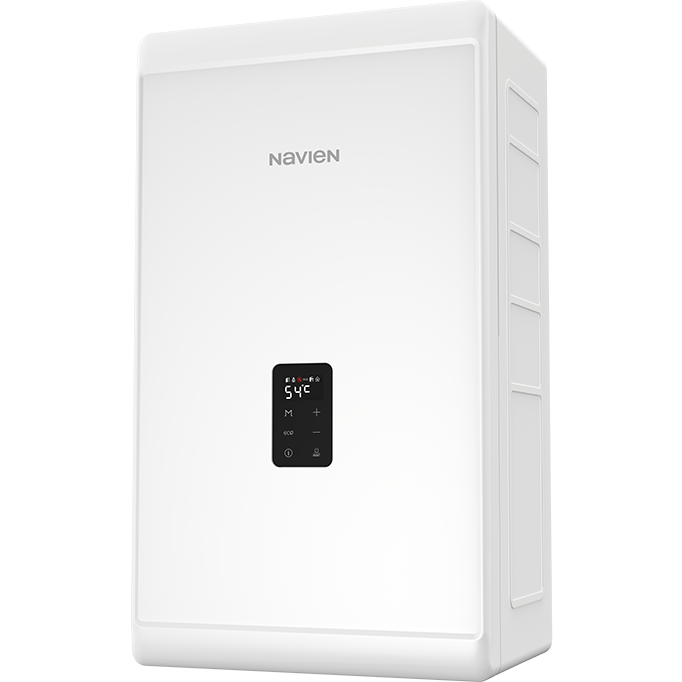

Navien NCB300 28kW Combi Boiler & Horizontal Flue Pack
The Navien NCB300 28kW Combi Boiler & Flue Pack is a compact, efficient and reliable gas condensing combi boiler package designed for smaller homes, flats and apartments. Supplied with a compatible Navien 60/100 1000mm standard horizontal flue kit, this pack provides the essential boiler and flue components required for a professional installation.
The NCB300-28K delivers a domestic hot water output of 28kW and a central heating output of up to 24kW, making it suitable for properties with one shower or modest hot water demand. With a hot water flow rate of up to 11.5 litres per minute at a 35°C temperature rise, it provides dependable hot water performance in a compact wall-mounted design.
Built with durable stainless steel heat exchangers, the Navien NCB300 offers long-term reliability and efficient performance. It is compatible with both Natural Gas and LPG, with a conversion kit included, and is certified for use with up to a 20% hydrogen blend, helping support future-ready heating installations.
The included Navien horizontal flue kit uses a 60/100mm concentric flue system and has a cuttable 1000mm length, allowing safe discharge of combustion gases through an external wall when installed correctly.
Pack Includes
- Navien NCB300-28K 28kW Combi Boiler - PNCB3000028L001
- Navien 60/100 1000mm Standard Horizontal Flue Kit - GXXX002208
Key Features
- Complete boiler and horizontal flue pack
- Navien NCB300-28K gas condensing combi boiler
- 28kW domestic hot water output
- 24kW central heating output at 80/60°C
- Hot water flow rate up to 11.5L/min at 35°C rise
- ErP A-rated efficiency at 93%
- ErP A+ efficiency achievable when installed with compatible Smart Plus multi-zone controls
- Durable stainless steel heat exchangers
- Compatible with Natural Gas and LPG, with conversion kit included
- 20% hydrogen blend ready
- IPX4 rated protection
- NOx Class 6 low-emission performance
- Compact wall-mounted design
- Smartphone control compatible with suitable Navien controls
- Smart weather forecasting and geofencing functionality with compatible controls
- Extended venting up to 8m with 60/100 coaxial flue system
- Includes 60/100 1000mm horizontal flue kit
- 5-year parts and labour warranty, subject to manufacturer terms and registration
Boiler Specification
- Brand: Navien
- Range: NCB300
- Model: NCB300-28K
- Product Type: Gas Condensing Combi Boiler
- Manufacturer Part Number: PNCB3000028L001
- Fuel Type: Natural Gas or LPG
- Boiler Type: Condensing Combination Boiler
- DHW Output Range: 28.0kW - 4.3kW
- Heat Output Range at 80/60°C: 24.0kW - 4.2kW
- Heat Input Range: 24.7kW - 4.3kW
- DHW Flow Rate at 25°C Rise: 16.0L/min
- DHW Flow Rate at 35°C Rise: 11.5L/min
- DHW Flow Rate at 45°C Rise: 9.0L/min
- Turn Down Ratio: 7:1
- Flue Size: 60/100mm coaxial
- Maximum Horizontal Flue Length: 8m
- Maximum Vertical Flue Length: 8m
- ErP Efficiency: A rated, 93%
- ErP Efficiency with Smart Plus x3: A+, 98%
- NOx Classification: Class 6
- Heat Exchanger Material: Stainless steel
- IP Rating: IPX4
- Dimensions: 680mm H x 395mm W x 285mm D
- Lift Weight: Approx. 29kg
- Warranty: 5 years parts and labour, subject to manufacturer terms and registration
Flue Specification
- Flue Type: Navien 60/100 1000mm Standard Horizontal Flue Kit
- Flue Part Number: GXXX002208
- Flue GTIN: 5060497280748
- Flue Diameter: 60/100mm concentric
- Flue Length: 1000mm, cuttable to suit installation
- Flue Material: PP / condensate-resistant construction
- Installation Type: Horizontal through-wall flue installation
- Flue Weight: Approx. 1.5kg
Ideal For
- Flats and apartments
- Smaller homes with one shower
- Replacement combi boiler installations
- Compact cupboard or wall-mounted installations
- Natural Gas or LPG installations
- Installations requiring boiler and horizontal flue in one pack
- Homes needing reliable hot water performance and efficient heating
Important Product Note
This listing includes the Navien NCB300 28kW combi boiler and compatible horizontal flue kit. Controls, magnetic filter, chemicals, pipework, stand-off bracket, plume management kit, flue extensions and installation materials are not included unless stated separately.
Please confirm fuel type, flue route, installation location and full system suitability before ordering. LPG use requires the correct conversion setup and commissioning by a qualified professional.
Professional Installation Required
This gas boiler and flue pack must be installed, commissioned and registered by a suitably qualified Gas Safe registered engineer. Installation must be completed in accordance with current UK Building Regulations, gas safety requirements and the manufacturer’s installation instructions.
