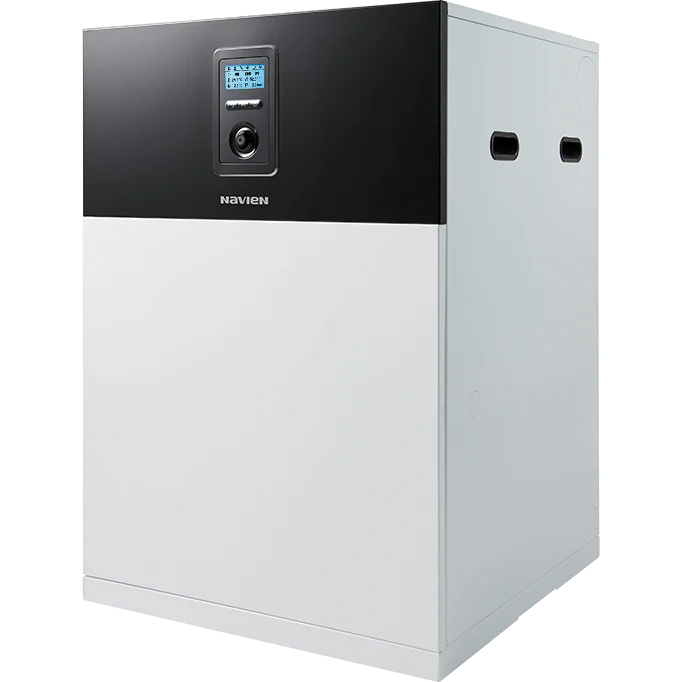

High-output, low-emission home comfort. The LCB700 36kW Internal Combi (LC) is Navien’s most powerful internal Blue Flame oil combi, delivering rapid hot water and efficient heating in a compact, installer-friendly chassis. Stainless steel heat exchangers, long flue runs and smart-ready controls make it a reliable upgrade for larger homes.
✅ Key Benefits
Strong DHW performance: up to 20 L/min (±15%) for showers and multiple taps.
Efficient & smart-ready: ErP A (93%); A+ with Navien Smart Plus controls.
Blue Flame, low NOx: modern burner technology for cleaner combustion.

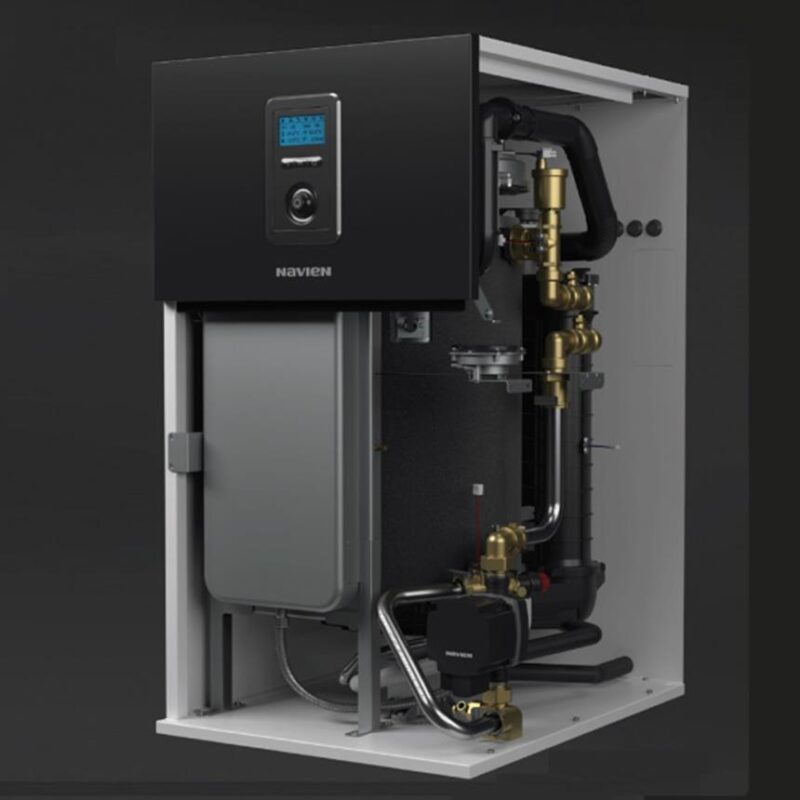

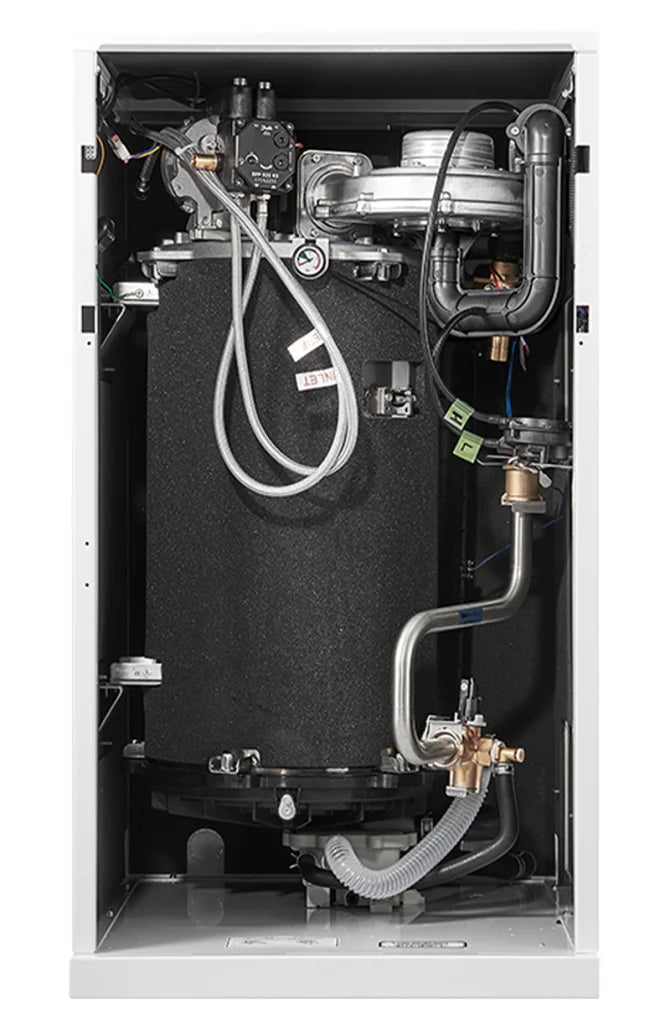

Stainless steel primary & DHW heat exchangers for durability.
Flexible flueing: up to 21 m vertical / 20 m horizontal (Ø60/100 mm coaxial).
Compact footprint:600 × 600 × 860 mm for utility rooms/kitchens.
10-year parts & labour warranty (T&Cs apply).
⚙️ Technical Specifications
Model
LCB700 36kW LC – Internal Combi
Fuel
Oil, Blue Flame (HVO compatible)
CH Output (80/60°C)
29–36 kW
CH Output (50/30°C)
39 kW (max)
DHW Flow (±15%)
20 L/min
ErP Efficiency
A (93%); A+ with Smart Plus
Flue (Ø60/100)
20 m horizontal / 21 m vertical
Dimensions (W × D × H)
600 × 600 × 860 mm (internal combi)
Weight
≈ 91 kg (internal)
Noise
~56 dB(A)
Heat Exchangers
Stainless steel (primary & DHW)
Warranty
10 years (parts & labour) – registration & T&Cs apply
🏠 Ideal For
3–5 bedroom homes with higher hot water demand
Internal, floor-standing combi replacements
Upgrades from older, less efficient oil boilers
⚠️ Installation & Compliance
Must be installed and serviced by an OFTEC-registered engineer. Follow all local building regs and manufacturer guidance.
