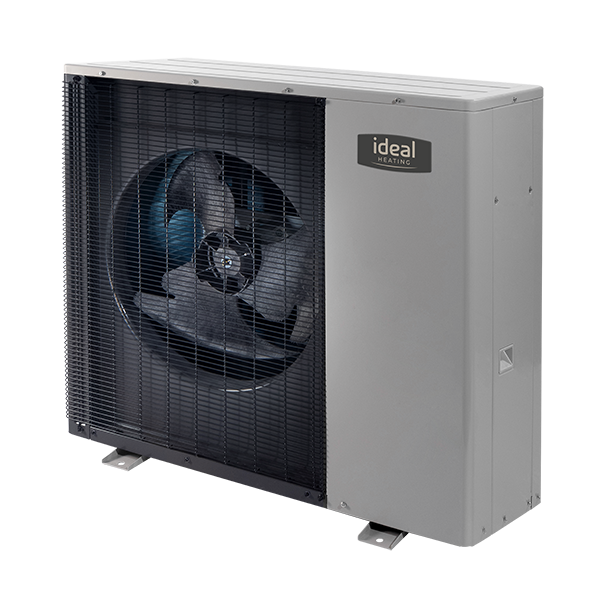

Ideal

LOGIC AIR HEAT PUMP MONO 4KW - 12KW R32, R33,R34,R35

Ideal

LOGIC AIR HEAT PUMP MONO 4KW - 12KW R32, R33,R34,R35

★★★★★ No reviews yet
£3,300.00 GBP inc. VAT
Only 2 units left
Apply for a Trade Account
  • American Express
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa

LOGIC AIR HEAT PUMP MONO 4KW - 12KW
R32, R33,R34,R35

The Logic Air heat pump range is our new range of monobloc heat pumps, offering great efficiencies both in heating and hot water. The Logic Air is designed to deliver efficient, simple and reliable low carbon heating in homes throughout the UK.

  • Highly efficient: SCOP up to 5.19*
  • Quiet Mark Approved
  • Compatibility: radiator and underfloor heating systems
  • Intuitive control: smart weather compensating controls
  • Low carbon refrigerant: zero ozone depletion and low global warming potential
  • Smart grid and solar PV compatible
  • Monobloc technology enables easy installation and servicing
  • Domestic hot water: hot, efficient and fast re-heat times with the Ideal heat pump cylinder range
Designation Unit 4kW 5kW 8kW 10kW
Ideal Product Code
AH750664 AH750665 AH750666 AH750667
MCS Certification No.
KIWA 00027/024 HP KIWA 00027/023 HP KIWA 00027/021 HP KIWA 00027/022 HP
PCDB Index Number
Flow Temp 35°C 107447 107235 106762 106754
Flow Temp 45°C 107446 107234 106761 106753
Flow Temp 55°C 107445 107233 106760 106752
Heat Pump Space Heating [35°C]*
ErP Rating A+++ A+++ A+++ A+++
ƞs 195 200 203 205
SCOP (EN14825) 4.96 5.07 5.16 5.19
Heat Pump Space Heating [55°C]*
ErP Rating A++ A++ A++ A++
ƞs 136 143 145 146
SCOP (EN14825) 3.48 3.65 3.7 3.73
Heating [A 7°C / W 35°C]*
Capacity (kW) 4 5 8.2 10.3
Power Input (kW) 0.75 0.97 1.58 2.1
COP 5.34 5.0 5.19 4.9
Heating [A 7°C / W 55°C]*
Capacity (kW) 4.0 5.0 8.2 10.3
Power Input (kW) 1.33 1.64 2.67 3.42
COP 3.0 3.04 3.07 3.01
Sound Power Level (EN 12102 - 1)
35°C db(A) 52 52 55 55
55°C db(A) 52 52 55 55
Pipework Connection Sizes
Heating F/R (mm) 28mm 28mm 28mm 28mm
Dimensions Outdoor Unit (mm)
Width 1095 1095 1095 1095
Depth 518 518 518 518
Height 798 798 1008 1008
Weight (kg)
Outdoor Unit 86 86 110 110
Electrical Data
Electrical Supply (50 Hz) 230v 230v 230v 230v
Phase Single Phase Single Phase Single Phase Single Phase
Refrigerant Charge (kg)*
R32 0.88 0.88 1.47 1.47
