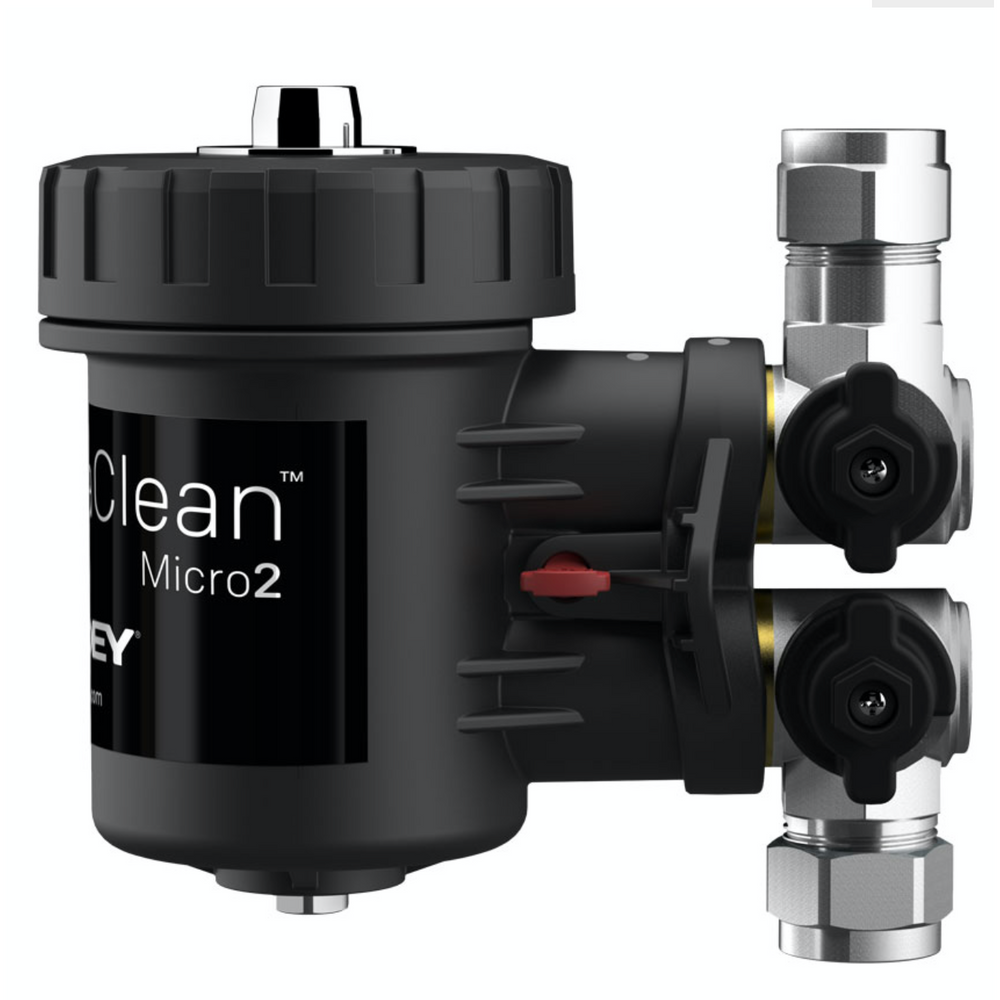

ADEY MagnaClean Micro2 22mm Magnetic System Filter
The ADEY MagnaClean Micro2 22mm is a compact magnetic system filter designed to help protect domestic central heating systems from magnetite, sludge and circulating debris. It is ideal for smaller heating systems and installations where space is limited.
This product is listed as part number FL1-03-01274-IE and is suitable for 22mm heating pipework, with a compact design that makes it easy to fit in tighter spaces.
Key benefits
Compact Micro2 design – ideal for tight installation spaces.
22mm connection size – suitable for common domestic central heating systems.
Magnetic system protection – captures magnetite and black iron oxide sludge.
Helps protect the boiler – reduces debris circulating through the heating system.
Bi-directional flow – either port can be used as the inlet.
Easy servicing – designed for straightforward maintenance by a qualified installer.
10-year warranty available – when registered within 30 days of installation, subject to manufacturer terms.
Product details
Brand
ADEY
Product range
MagnaClean Micro2
Part number
FL1-03-01274-IE
Product type
Magnetic system filter
Connection size
22mm
Thread size
3/4"
Fluid capacity
250ml
Flow configuration
Bi-directional
Suitable for
Small domestic central heating systems
Lead time
3–5 working days, direct delivery
Why choose the MagnaClean Micro2?
Central heating systems can collect magnetite and sludge over time. If this debris continues to circulate, it can affect performance, reduce efficiency and contribute to boiler or system issues. The MagnaClean Micro2 helps capture this magnetic debris before it causes further problems.
Ideal for
Domestic boiler installations
Small central heating systems
Retrofit boiler protection
Heating system upgrades
Installations with limited space
Professional plumbing and heating engineers
Technical specifications
Canister and lid
Material: Glass reinforced nylon
Fluid capacity: 250ml
Inlet diameter: 22mm at valve
Outlet diameter: 22mm at valve
Thread: Pressure thread
Flow configuration: Bi-directional – either port can be inlet
Main lid seal: EPDM
Valve to canister seal: EPDM
Magnet
Housing: Stainless steel
Length: 97.5mm
Diameter: 19mm
Bleed valve
Body material: Nickel plated brass
Screw: Nickel plated brass
Thread interface: M6
Seals: EPDM
Drain port
Drain plug material: Nickel plated brass
Drain plug thread: M8
Seals: EPDM
Triple seal valves
Body material: Nickel plated brass
Seal material: Long-life PTFE ball seals
O-ring material: EPDM 70 seals x 3
Valve inlet/outlet: 22mm
Before you order
Please check that the ADEY MagnaClean Micro2 22mm filter is suitable for your heating system before purchase. Installation should be carried out by a suitably qualified plumbing or heating professional.
