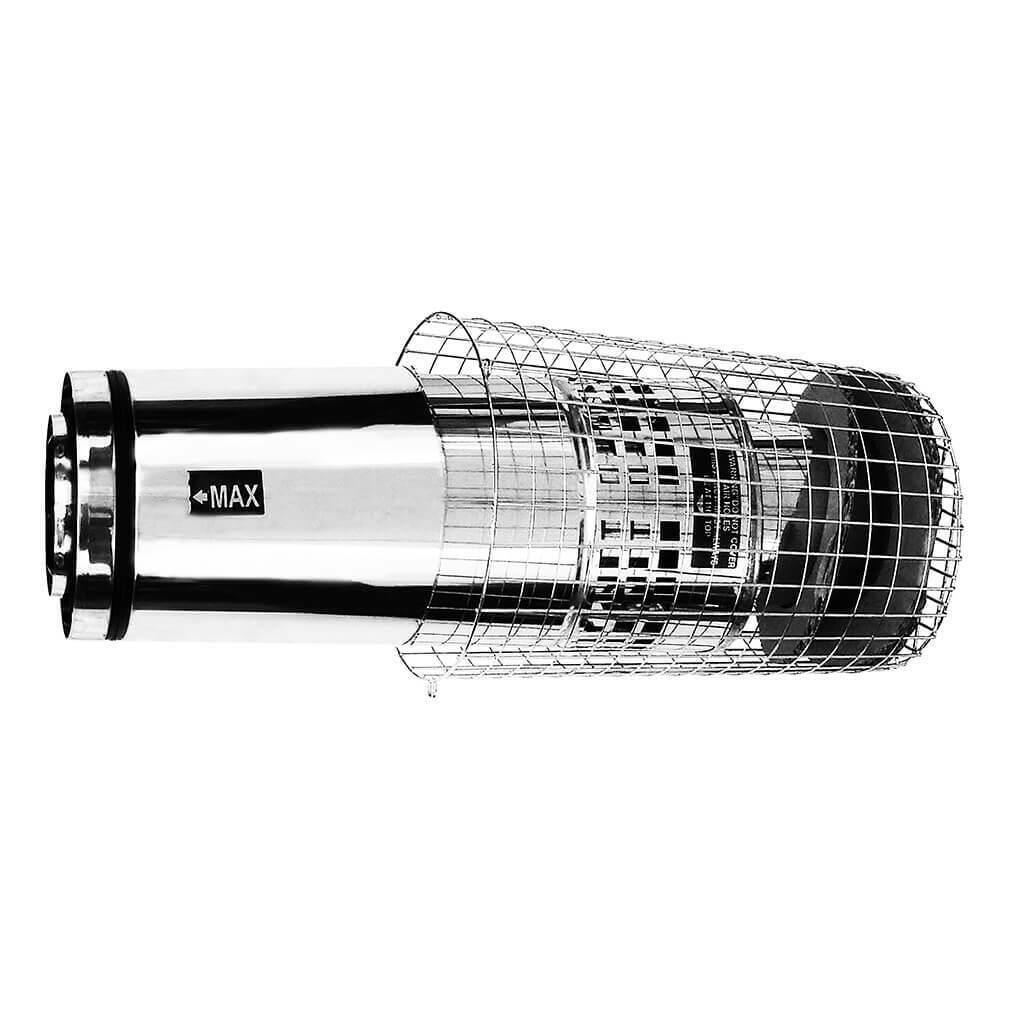

The Grant EZ200 Low-Level Balanced Flue Kit 116813 is a genuine Grant EZ-Fit Yellow System flue kit designed for compatible Grant internal and boilerhouse oil boiler installations.
The EZ200 low-level balanced flue kit is suitable for selected Grant Vortex, internal, boilerhouse and condensing oil boilers above 26kW, commonly used across the 26kW to 70kW output range where the larger 100mm flue system is required.
This low-level balanced flue kit provides a neat horizontal through-wall flue route and is designed to make installation quicker and simpler. The Grant EZ-Fit Yellow System features self-sealing ducts, a quick-fit clamp arrangement, telescopic adjustment and a compact black-painted terminal section for a clean external finish.
Key Features
Genuine Grant EZ-Fit low-level balanced flue kit
Grant part code: EZ200
Supplier / product reference: 116813
Part of the Grant EZ-Fit Yellow System
Low-level horizontal balanced flue kit
Suitable for selected Grant boilers over 26kW
Commonly listed for compatible Grant models from 26kW to 70kW
Designed for internal, boilerhouse and condensing Grant oil boilers
Not suitable for Grant external module boilers
100mm flue diameter
Stainless steel flue construction
Black painted terminal finish
Telescopic kit design
Self-sealing ducts requiring no silicone or tape on standard joints
Quick-fit clamp arrangement for secure assembly
Compact terminal design for a neat external appearance
Terminal cone helps reduce condensate staining on external walls and patio areas
Includes stainless steel terminal guard
Compatible with selected Grant EZ-Fit Yellow System extensions and elbows
Product Specification
Brand: Grant
Range: EZ-Fit Yellow System
Product Type: Low-Level Balanced Flue Kit
Model / Part Code: EZ200
Supplier / Product Reference: 116813
Google MPN: EZ200
EAN / GTIN: Not verified - confirm against physical stock label before submitting to Google Merchant Center
Snorkel clamp, where required for compatible boilerhouse installations
Compatible Boiler Types
Selected Grant Vortex internal boilers over 26kW
Selected Grant VortexBlue internal boilers over 26kW
Selected Grant boilerhouse models over 26kW
Selected Grant condensing oil boilers requiring the EZ200 / 100mm Yellow System flue
Compatible Grant models within the 26kW to 70kW output range, subject to installation manual
Not Suitable For
Grant external module boilers
Grant boilers up to 26kW that require the smaller EZ90 flue system
Vertical flue installations
High-level flue installations
Non-Grant boilers unless specifically approved by the appliance manufacturer
Installations outside the approved Grant flue design and terminal clearance requirements
What Is a Low-Level Balanced Flue Kit?
A low-level balanced flue kit allows a compatible oil boiler to discharge combustion gases horizontally through an external wall while also drawing combustion air from outside. This creates a room-sealed flue system that helps keep boiler operation stable and independent of the room air supply.
This type of flue is commonly used where the boiler is installed indoors or in a boilerhouse and a low-level wall terminal is the most suitable flue route.
Installation Benefits
Telescopic design helps suit standard wall depths
Quick-fit clamp arrangement helps reduce installation time
Self-sealing joints help reduce installation mess
No silicone or tape required on standard flue joints
Compact terminal provides a neat external appearance
Terminal cone helps reduce condensate staining
Compatible with selected Grant Yellow System extensions and elbows for more flexible siting
Important Product Note
This listing is for the Grant EZ200 Low-Level Balanced Flue Kit 116813. It is intended for compatible Grant internal, boilerhouse and condensing oil boilers requiring the larger EZ200 / 100mm Yellow System low-level balanced flue arrangement.
Always check the boiler model, output, appliance installation manual, Grant flue guide, wall thickness, terminal clearance requirements and approved flue route before ordering. Grant EZ-Fit flue components must only be used in approved configurations.
Professional Installation Required
This oil boiler flue kit must be installed by a suitably qualified oil heating engineer. Installation should be carried out by a competent professional, such as an OFTEC registered technician, in accordance with current regulations, Grant installation instructions and safe working practices.
