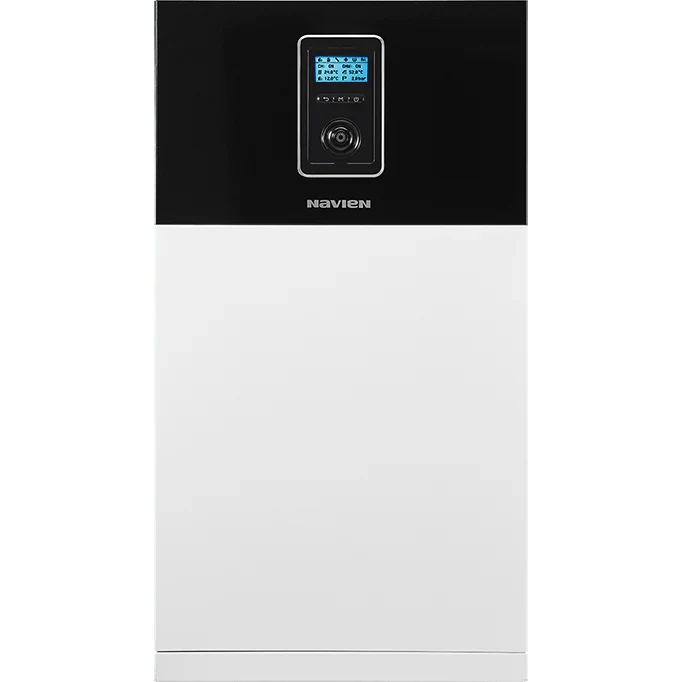

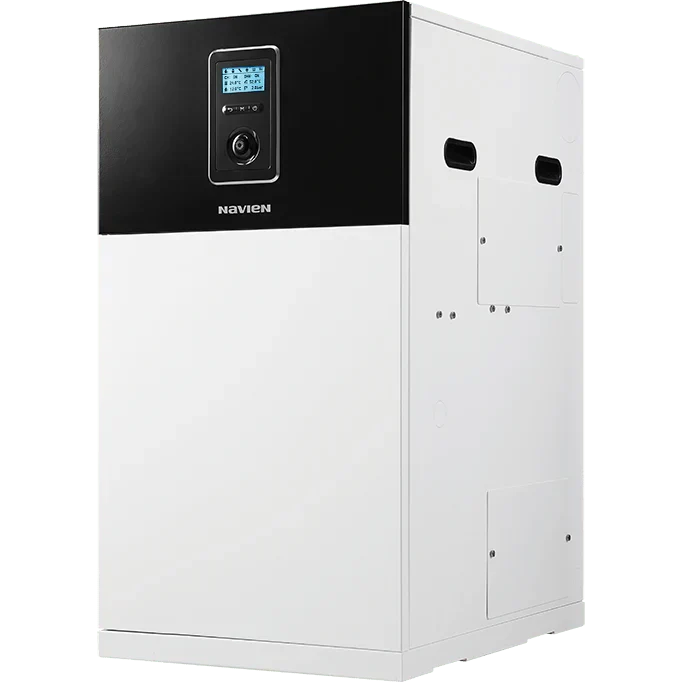

The Navien LCB700 21kW RS Internal Regular Oil Boiler is a high-efficiency condensing oil boiler designed for internal installation in domestic heating systems.
Part of Navien's innovative LCB700 range, the LCB700-21RS combines advanced blue flame combustion technology, a durable stainless-steel heat exchanger and flexible installation options to provide efficient, dependable oil-fired central heating.
With a two-stage heat output of 16kW / 21kW at 80/60°C and up to 23.0kW at 50/30°C, this model is designed for properties requiring a compact regular oil boiler with excellent efficiency and low emissions.
Key Features
Navien LCB700 internal regular oil boiler
Model: LCB700-21RS
Maximum heat output: 21kW
Two-stage 16kW / 21kW heat output at 80/60°C
Up to 23.0kW output at 50/30°C
Condensing blue flame oil boiler technology
ErP A-rated boiler
93% ErP efficiency
Can achieve A+ system efficiency when combined with qualifying Navien Smart Plus controls
HVO compatible
Stainless-steel heat exchanger
Ultra-low NOx combustion technology
57.2mg/kWh NOx emission rate
Compact internal design
Text-driven integral display
Displays boiler operating and fuel consumption information
3-zone ready when used with Navien Smart Plus control pack
Flexible pipework arrangements
Combined PRV / condensate drainage design
60/100mm coaxial plastic flue system
Maximum horizontal flue length up to 20 metres
Maximum vertical flue length up to 21 metres
10-year parts and labour warranty as standard, subject to Navien terms
Technical Specification
Brand: Navien
Range: LCB700
Model: LCB700-21RS
Product Type: Internal Regular Oil Boiler
Boiler Type: Condensing Regular / Heat Only Boiler
Installation Location: Internal
Fuel Type: Heating Oil / Kerosene
HVO Compatible: Yes
Heat Input Stage 1 / Stage 2: 17kW / 22kW
Heat Output at 80/60°C: 16kW / 21kW
Maximum Heat Output at 50/30°C: 23.0kW
ErP Energy Rating: A
ErP Efficiency: 93%
Potential System Rating: Up to A+ with qualifying Smart Plus control configuration
NOx Emissions: 57.2mg/kWh
Heat Exchanger: Stainless Steel
Flue Type: Coaxial Plastic
Flue Size: 60/100mm
Maximum Horizontal Flue Length: 20m
Maximum Vertical Flue Length: 21m
90° Flue Elbow Equivalent: 1.3m
Central Heating Flow Connection: 22mm
Central Heating Return Connection: 22mm
Oil Supply: 1/4" BSP
Condensate Connection: 21.5mm minimum
Dimensions: 470mm W x 600mm D x 860mm H
Net Weight: 58kg
Control Display: Integral text-driven display
Smart Control Compatibility: Navien Smart Plus
Heating Zones: Up to 3 zones with compatible Smart Plus controls
Warranty: 10-year parts and labour warranty, subject to manufacturer terms
High Efficiency Blue Flame Technology
The Navien LCB700 incorporates advanced blue flame combustion technology designed to deliver efficient oil combustion while keeping NOx emissions low.
The LCB700-21RS achieves an ErP A rating with 93% efficiency. When incorporated into a qualifying heating system using Navien Smart Plus controls, the system can achieve an A+ rating.
21kW Two-Stage Heating Performance
The LCB700-21RS operates at two heating stages, providing approximately 16kW and 21kW output at 80/60°C. At lower-temperature condensing conditions of 50/30°C, maximum output increases to approximately 23.0kW.
This two-stage design allows the boiler to better respond to changing heating demand compared with a simple fixed-output appliance.
HVO Compatible
Navien lists the LCB700 range as HVO compatible, helping provide greater flexibility as the heating industry transitions towards lower-carbon liquid fuel alternatives.
Fuel suitability, burner setup and any conversion or commissioning requirements should always be confirmed by a qualified oil heating engineer and carried out in accordance with current Navien instructions.

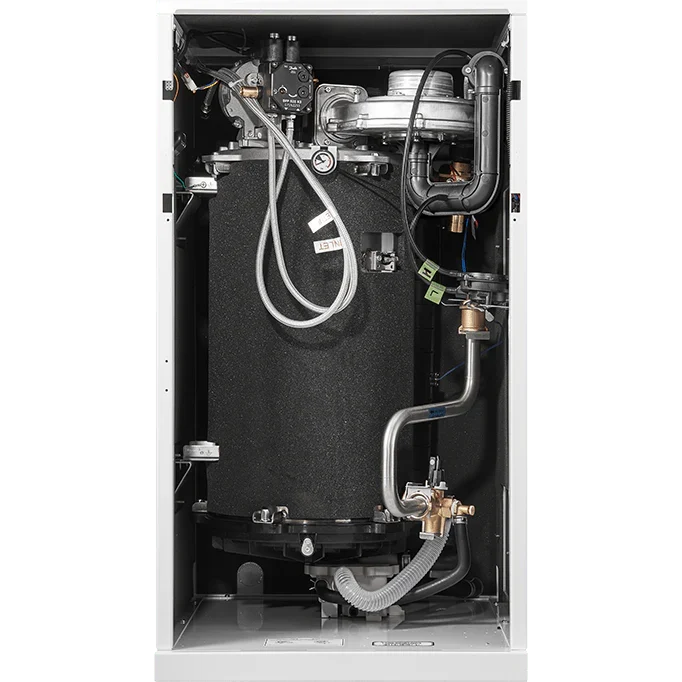

Stainless-Steel Heat Exchanger
The LCB700 features a durable stainless-steel heat exchanger designed to provide long-term performance and efficiency in a condensing oil boiler application.
Flexible Flue Installation
The Navien LCB700 uses a 60/100mm coaxial plastic flue system and offers unusually long flue capabilities for flexible installation.
Maximum horizontal flue length: up to 20m
Maximum vertical flue length: up to 21m
90° elbow equivalent deduction: approximately 1.3m
Actual permitted flue length depends on the complete approved flue arrangement, number of bends and Navien installation instructions.
Smart Plus Controls
The LCB700 is compatible with Navien's Smart Plus control system. When correctly configured, Smart Plus can provide multi-zone heating control, with the LCB700 capable of supporting up to three heating zones.
A qualifying Smart Plus control configuration can also increase the overall system energy rating from ErP A to ErP A+.
Regular Boiler Installation
The LCB700-21RS is a regular / heat-only boiler. It does not provide instantaneous domestic hot water in the same way as a combination boiler.
Where domestic hot water is required, the boiler is typically incorporated into a heating system using a separate hot water cylinder and the necessary external system components and controls.
10-Year Warranty
Navien currently advertises the LCB700 range with a 10-year parts and labour warranty as standard, subject to installation, commissioning, registration, servicing and all applicable Navien warranty terms.
Important Product Information
This product is the Navien LCB700-21RS 21kW Internal Regular Oil Boiler.
Do not confuse this model with the LCB700-21LS System Boiler, LCB700-21LC Combi Boiler or the external LCB700-21RSX version.
Flue kit, hot water cylinder, heating controls, system components, oil line components, filters, valves, chemicals and installation accessories are not included unless specifically stated elsewhere in the listing.
Professional Installation Required
This oil-fired boiler must be installed and commissioned by a suitably qualified oil heating engineer. In the UK, installation by an OFTEC registered technician is recommended.
The installer must confirm boiler sizing, system design, oil supply, fuel type, flue arrangement, condensate disposal, heating controls and combustion settings before commissioning.
