Navien LCB700 36kW External Combi Oil Boiler (LCX – Blue Flame, ErP A)
Secure Payment Options:
Gastos estimados de envío

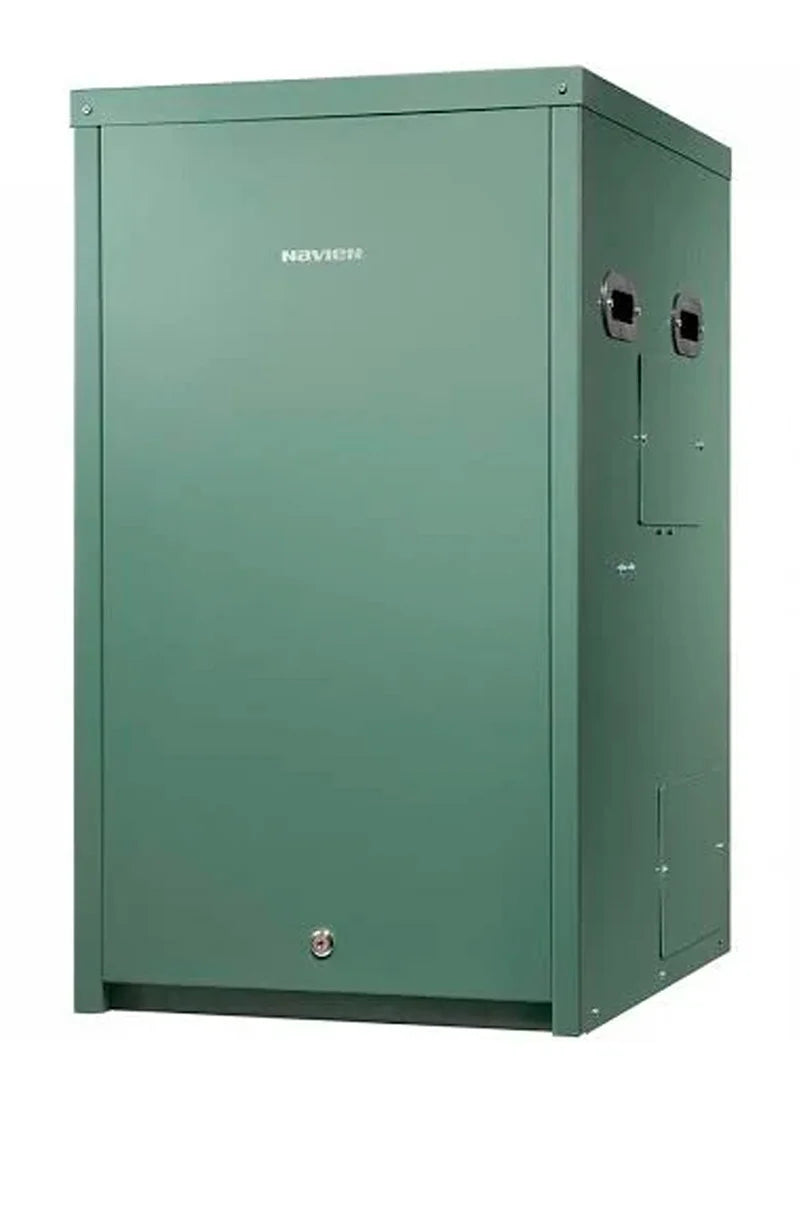

Navien LCB700 36kW External Combi Oil Boiler (LCX)

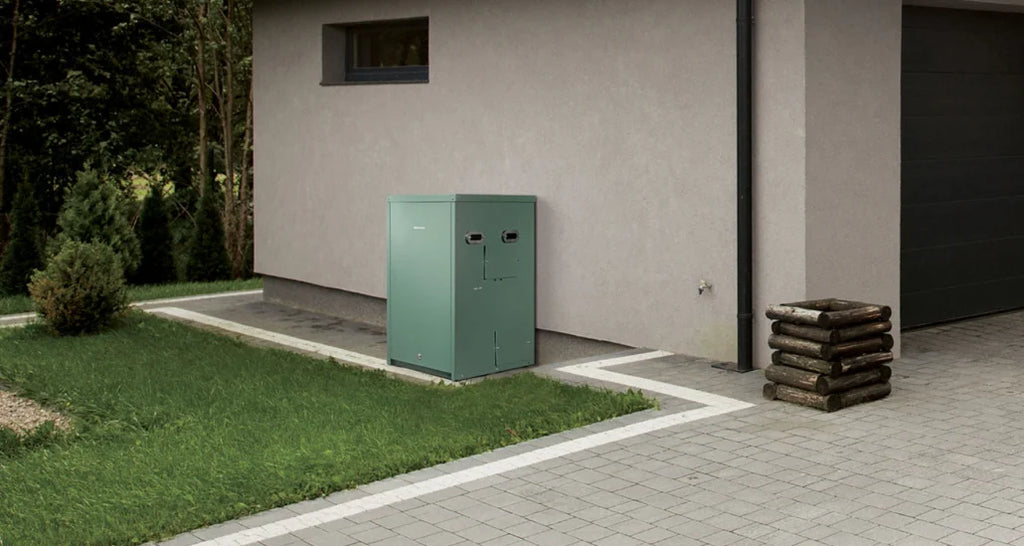

High-output, outdoor convenience. The LCB700 36kW External Combi (LCX) sits outside to free up indoor space while delivering powerful heating and fast hot water. With Blue Flame low-NOx combustion, stainless steel heat exchangers, and smart-ready controls, it achieves an ErP A rating (93%) — and A+ when paired with Navien Smart Plus thermostats.
Key Benefits
- Strong DHW performance: up to 20 L/min (±15%) for larger homes.
- Efficient & smart-ready: ErP A; A+ with Smart Plus controls.
- Low NOx Blue Flame: cleaner combustion and future-ready tech.
- Durable build: twin stainless steel heat exchangers.
- Flexible flueing: coaxial Ø60/100 mm, up to 20 m horizontal / 21 m vertical.
- Weather-resistant external case protects components outdoors.
- Quiet operation: ~56 dB(A) typical.
- 10-year warranty (parts & labour; registration & T&Cs apply).
Technical Specifications
| Model | LCB700 36kW LCX – External Combi |
|---|---|
| Fuel | Oil (Blue Flame) |
| CH Output (80/60 °C) | 29–36 kW |
| CH Output (50/30 °C) | 39.0 kW (max) |
| DHW Flow Rate | 20 L/min (±15%) |
| ErP Efficiency | A (93%); A+ with Smart Plus |
| Flue (Ø60/100) | 20 m horizontal / 21 m vertical |
| Dimensions (W × D × H) | ≈ 650 × 673 × 900 mm (external combi) |
| Weight | ≈ 98 kg (external combi) |
| Noise | ~56 dB(A) |
| Heat Exchangers | Stainless steel (primary & DHW) |
| Warranty | 10 years (parts & labour) |
Specs per Navien UK technical data; noise figure from merchant technical spec.
Installation & Compliance
Must be installed by an OFTEC-registered engineer. Follow the current Installation & Operation Manual and local regulations.
