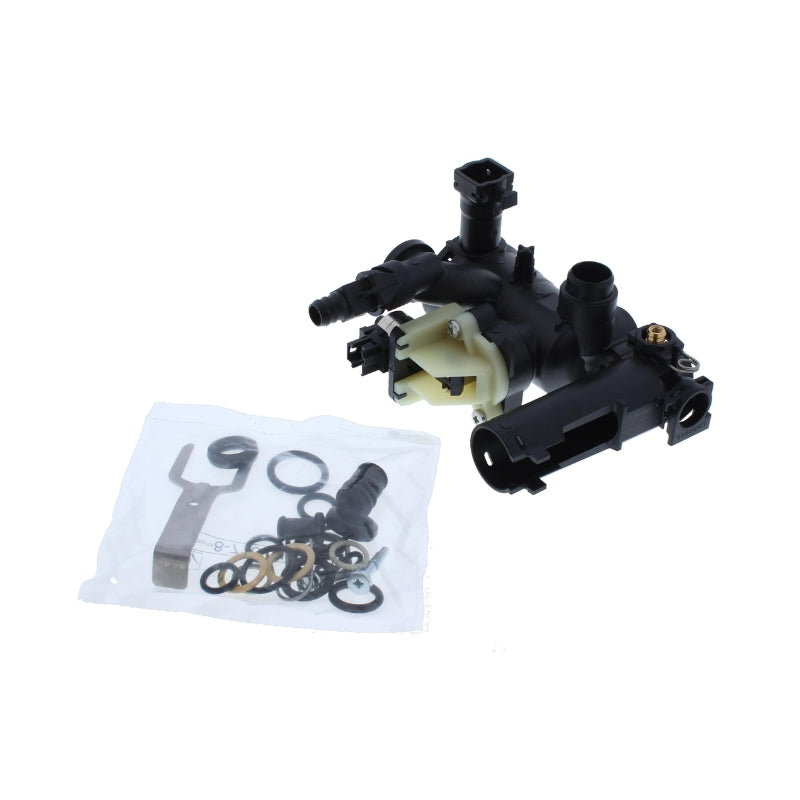

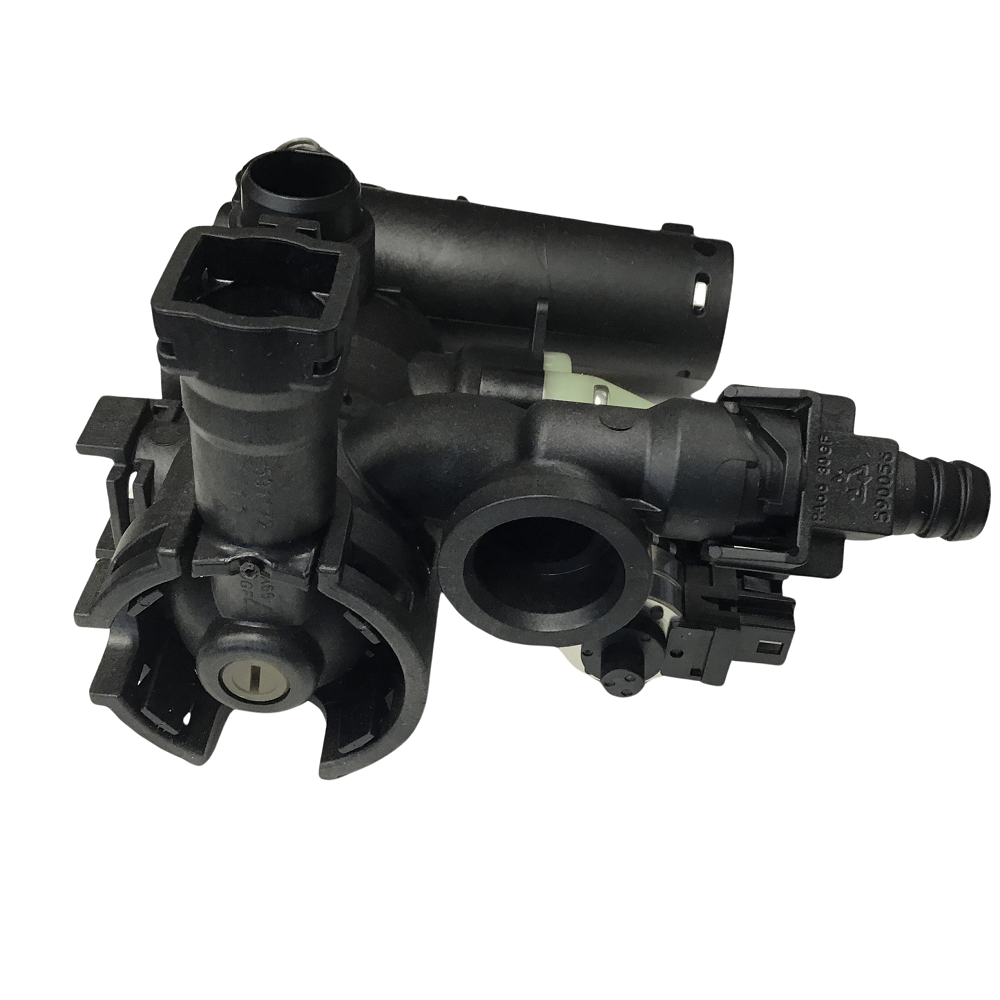

Worcester Bosch Return Manifold Sub Assembly 87161064420
The Worcester Bosch Return Manifold 87161064420 is a genuine OEM replacement manifold sub-assembly designed for selected Worcester Greenstar boilers. Also known as the right-hand return block, this component sits within the boiler’s hydraulic and pump section, helping route return water back through the appliance for reliable heating and hot water operation.
This Worcester return manifold is suitable for a wide range of Greenstar models, including selected CDi, CDi Classic, Junior, Si and i System boilers. It is commonly replaced when the original manifold is leaking, damaged, blocked or causing flow-related performance issues.
Key Features
Genuine Worcester Bosch boiler spare part
Manufacturer part number: 87161064420
GTIN / EAN: 4010009876069
Return manifold sub-assembly / right-hand block
Designed for selected Worcester Greenstar boilers
Helps route primary return water through the boiler hydraulic section
Suitable for Greenstar CDi, Junior, Si, i System and Classic ranges
Supplied with seals, clips or fittings where included by manufacturer batch
Ideal for boiler service, repair and leak replacement work
Compatible Boiler Ranges
Worcester Greenstar CDi
Worcester Greenstar CDi Classic
Worcester Greenstar i System
Worcester Greenstar i Junior
Worcester Greenstar Si
Selected Worcester Greenstar LPG models
Example Compatible Models
Worcester Greenstar 30 CDi System
Worcester Greenstar Combi 25-40 CDi
Worcester Greenstar Combi 27-37 CDi HE
Worcester Greenstar 29-38 CDi Classic
Worcester Greenstar 29-42 CDi Classic ErP
Worcester Greenstar 12-24 i System
Worcester Greenstar 24-28 i Junior HE
Worcester Greenstar 25-28 Si
Product Specification
Brand
Worcester Bosch
Product Type
Return Manifold Sub Assembly
Manufacturer Part Number
87161064420
GTIN / Barcode
4010009876069
Position
Right-hand return manifold / hydraulic block
Application
Primary water return flow and boiler hydraulic circulation
Compatible Boiler Ranges
Greenstar CDi, CDi Classic, Junior, Si and i System models
Condition
New replacement boiler spare
Common Signs of a Faulty Return Manifold
Leaks or weeping from the manifold body or connections
Visible cracks, wear or damage to the hydraulic block
Poor flow through the boiler hydraulic section
Pressure or circulation issues linked to the return assembly
Service engineer diagnosis requiring manifold replacement
Installation Note
Before ordering, always check your boiler model, GC number, appliance serial number and exploded parts diagram to confirm compatibility with 87161064420. Some installations may require different supplied bungs, seals or connections depending on the boiler range.
Important: boiler spares should only be fitted by a Gas Safe registered engineer or suitably qualified heating professional. The appliance must be isolated, drained, re-sealed, refilled, bled and tested correctly after installation.
