Grant Vortex Pro External Combi Boiler | 26kW or 36kW | 12-17 Working Day Delivery
Grant
Grant Vortex Pro External Combi Boiler | 26kW or 36kW | 12-17 Working Day Delivery
Grant Vortex Pro External Combi Boiler | 26kW or 36kW
Important Delivery Notice: This product has an estimated delivery timescale of 12-17 working days. Please allow for this lead time when placing your order.

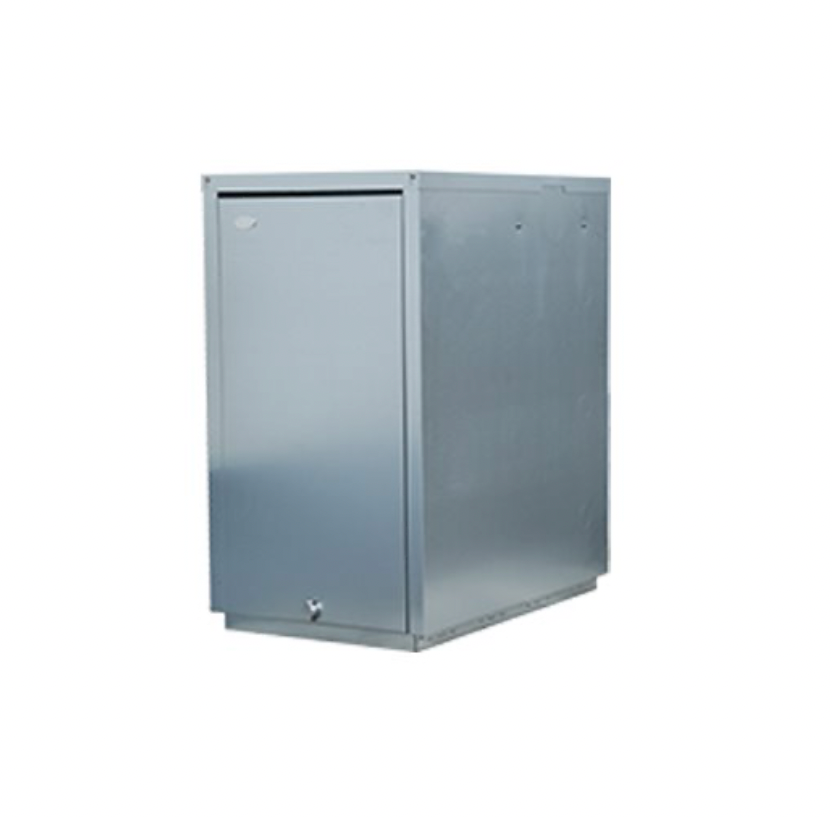

The Grant Vortex Pro External Combi Boiler is a high-efficiency external oil-fired combination boiler designed to provide reliable central heating and instantaneous domestic hot water from a weather-resistant outdoor unit.
Available in 26kW and 36kW variants, this external combi boiler is ideal for properties where internal space is limited or where an outdoor boiler installation is preferred. The boiler is housed in a durable external powder-coated casing and is designed to withstand demanding outdoor conditions.
The Grant Vortex Pro External Combi range features a stainless steel heat exchanger, factory-fitted multi-directional flue, built-in frost protection, internal condensate trap, 24 litre expansion vessel and Riello RDB low NOx burner. It is designed for efficient heating performance, reliable hot water delivery and straightforward servicing.
Available Variants
- 26kW Variant: Grant Vortex Pro External Combi 26 - VTXOMCOMBI26
- 36kW Variant: Grant Vortex Pro External Combi 36 - VTXOMCOMBI36
Delivery Lead Time
- Estimated delivery: 12-17 working days
- This product is not a standard next-day delivery item
- Please ensure the delivery timescale is suitable before ordering
- Delivery lead time should be allowed for when booking installation work
Key Features
- External oil-fired combination boiler
- Available in 26kW and 36kW output variants
- Factory-fitted multi-directional flue
- Durable external powder-coated casing
- Designed for outdoor installation where internal space is limited
- Provides central heating and instantaneous domestic hot water
- Stainless steel heat exchanger
- Riello RDB low NOx burner
- Built-in frost stat for external installation protection
- Factory-fitted internal condensate trap
- 24 litre expansion vessel supplied as standard
- Neon diagnostic indicators for user-friendly operation
- Floor-standing external unit
- ErP A-rated space heating performance
- ErP B-rated water heating performance
- HVO / biofuel compatible depending on fuel type and blend percentage
- Up to 10-year guarantee when installed by a G1 Installer, subject to Grant terms and conditions
26kW Variant Specification
- Brand: Grant
- Range: Vortex Pro External Combi
- Model: Vortex Pro External Combi 26
- Manufacturer Part Number: VTXOMCOMBI26
- EAN / GTIN: 5060090371751
- Fuel Type: Oil / Kerosene
- Boiler Type: External Oil-Fired Combination Boiler
- Set Output: 26kW
- Maximum Output: 26kW
- Heat Output BTU: Approx. 90,000 BTU/h
- DHW Output: 26kW
- DHW Flow Rate at 35°C Rise: Approx. 17L/min, subject to mains water conditions
- Efficiency: 91.71%
- NOx Class: Class 2
- Flow / Return Tappings: 22mm
- Burner: Riello RDB

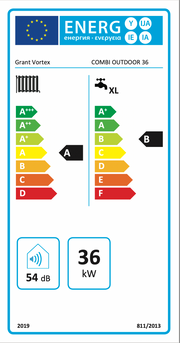

- Energy Rating: A Heating / B Water
- Load Profile: XL
- Dimensions: 945mm H x 658mm W x 754mm D
- Height: 945mm
- Width: 658mm
- Depth: 754mm
- Approx. Weight: 206kg
36kW Variant Specification
- Brand: Grant
- Range: Vortex Pro External Combi
- Model: Vortex Pro External Combi 36
- Manufacturer Part Number: VTXOMCOMBI36
- EAN / GTIN: 5060090371768
- Fuel Type: Oil / Kerosene
- Boiler Type: External Oil-Fired Combination Boiler
- Set Output: 36kW
- Maximum Output: 36kW
- Heat Output BTU: Approx. 123,000 BTU/h
- DHW Output: 36kW
- Efficiency: 94.56%
- NOx Class: Class 2
- Flow / Return Tappings: 28mm
- Burner: Riello RDB
- Energy Rating: A Heating / B Water
- Load Profile: XL
- Dimensions: 945mm H x 658mm W x 754mm D
- Height: 945mm
- Width: 658mm
- Depth: 754mm
- Approx. Weight: 225kg
Ideal For
- Homes where internal boiler space is limited
- Outdoor boiler installations
- Replacement oil combi boiler installations
- Properties requiring heating and domestic hot water from one unit
- Domestic properties using kerosene / oil heating
- Installations requiring a factory-fitted external flue arrangement
- Applications where a durable weather-resistant external casing is required
Installation Benefits
- External floor-standing design helps save indoor space
- Factory-fitted flue simplifies installation planning
- Internal frost protection supports outdoor installation
- Integrated condensate trap reduces external condensate components
- Neon diagnostic indicators support servicing and fault diagnosis
- Riello burner technology offers dependable oil burner performance
- Stainless steel heat exchanger supports long-term efficiency
Important Delivery Notice
Please note: This product has an estimated delivery timescale of 12-17 working days. This should be clearly considered before ordering and before booking installation work.
Important Product Note
This listing is for the Grant Vortex Pro External Combi Boiler with selectable 26kW or 36kW output variant. Controls, oil line components, fire valves, filters, pipework, fittings, commissioning materials and installation accessories are not included unless stated separately.
The correct output variant must be selected before checkout. Suitability depends on the property heat requirement, domestic hot water demand, oil supply arrangement, flue position, condensate route and installation requirements.
Professional Installation Required
This oil-fired boiler must be installed, commissioned and serviced by a suitably qualified oil heating engineer. Installation should be carried out by a competent professional, such as an OFTEC registered technician, in accordance with current regulations, Grant installation instructions and safe working practices.
