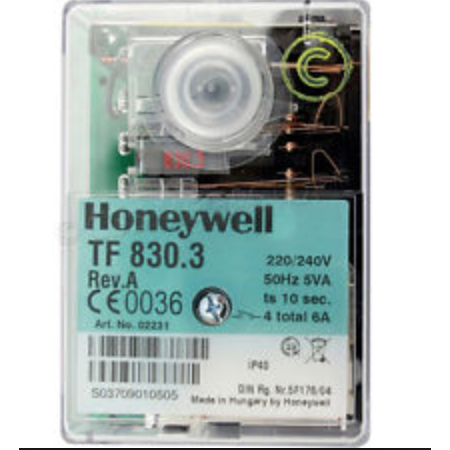

Honeywell | Satronic TF830.3 Control Box 220/240V
The Honeywell Satronic TF830.3 Control Box is a genuine oil burner safety control unit designed to control and monitor 1-stage oil power burners up to 30 kg/h capacity. Suitable for intermittent operation, this burner control box provides reliable start-up sequencing, flame supervision and lockout protection for oil-fired heating systems.
Used widely in oil boiler and burner servicing, the TF830.3 features a flame-resistant transparent housing, manual reset from lockout, flame check and reset circuits, and a temperature-compensated timer for dependable burner control.
Key Features
- Genuine Honeywell / Satronic oil burner control box
- Model: TF830.3
- Suitable for 1-stage oil power burners
- For oil burners up to 30 kg/h capacity
- Operating voltage: 220/240V, 50Hz
- Post-ignition time: approximately 20 seconds
- Low voltage protection according to EN230
- Push button manual reset from lockout
- Integrated lockout signal lamp
- Flame-resistant transparent plastic housing
- Compatible with selected Satronic/Honeywell flame detectors
Flame Detection Compatibility
- Photoresistor MZ 770 S
- Infrared-flicker detector IRD 1010 / IRD 1010.1
- UV solid state sensor UVD 970
Applications
The Honeywell Satronic TF830.3 is commonly used in oil-fired boilers, domestic and commercial oil burner systems, and burner servicing where a dependable 220/240V oil burner safety control box is required.
Please note: Always check the model number, wiring base and flame detector compatibility before ordering. Installation should only be carried out by a qualified heating or oil burner engineer.
